Viqua Sterilight S810QL Lamp & Sleeve

Viqua Sterilight S810QL Lamp & Sleeve Combo Kit

Keep your UV water purification system running at peak efficiency with the Viqua Sterilight S810QL Lamp & Quartz Sleeve Combo Kit. This genuine OEM replacement kit includes the essential components to maintain optimal disinfection performance for Viqua and Sterilight UV systems.

Product Features:

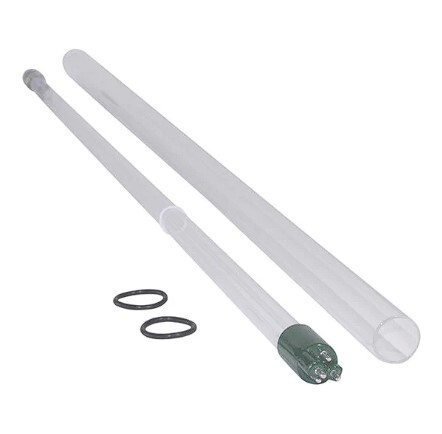

• Complete Replacement Kit: Includes one S810RL UV lamp and one QS-810 quartz sleeve, along with O-rings for a leak-free seal.

• Powerful UV Disinfection: The S810RL lamp emits UV-C light at 254 nm, effectively inactivating bacteria, viruses, and other harmful microorganisms.

• Extended Lamp Life: Engineered for up to 9,000 hours (approximately one year) of continuous operation.

• High-Quality Quartz Sleeve: Protects the lamp while allowing maximum UV transmission for effective water treatment.

• Easy Installation: Designed for simple, tool-free maintenance — no need to hire a technician.

Compatibility:

• Designed for use with the following Viqua/Sterilight UV systems:

  • S8Q-PA, S8Q, S8Q-PV, S8Q-GOLD

  • SSM-37

  • Integrated Home Systems: IHS12-D4, IHS22-D4

Technical Specifications:

• Lamp Model: S810RL

• Quartz Sleeve Model: QS-810

• Lamp Length: 31.9 inches (810 mm)

• Wattage: 38W

• Connection Type: 4-pin, staggered

Maintenance Recommendation:

To ensure continued disinfection and compliance with water safety standards, it is recommended to replace the UV lamp every 12 months and the quartz sleeve annually or as needed if fouling occurs.
